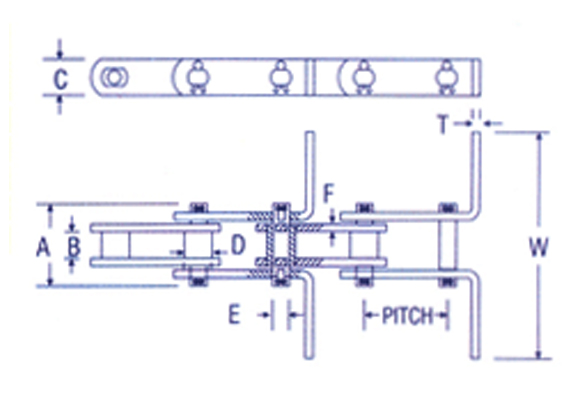

Redler Chain
| Chain Width (W) | Link Width (C) | Outer Link Thickness (T) | Inner LinkThickness (F) | Pitch (P) | Pin Length (B) | Inner Wedth (B) | Bush Dia (D) | Pin Dia (E) |
| 200-585 | 40 | 8 | 6 | 125 | 81 | 28 | 25.4 | 15.2 |
| 200-585 | 40 | 10 | 6 | 125 | 85 | 28 | 25.4 | 15.2 |
| 200-585 | 50 | 8 | 6 | 125 | 81 | 28 | 31.75 | 19.05 |
| 200-585 | 50 | 10 | 8 | 125 | 90 | 28 | 31.75 | 19.05 |
| 200-585 | 75 | 10 | 8 | 125 | 94 | 32 | 31.75 | 19.05 |

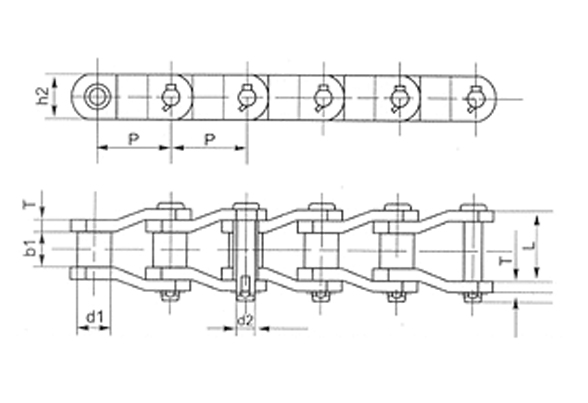

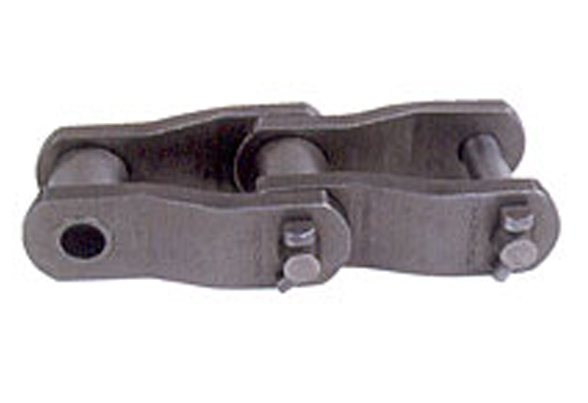

Heavy-Duty Cranked-link transmission chain
| BTX ISO/DIN Chain no. | Pitch | Roller Diameter | Width between inner plates | Pin diameter | Pin Length | Inner Plate depth | Plate Thickness | Ultimate tensile strength | Average tensile strength | Weight per meter |
| P | d1 max | d1 min | d2max | L max | h2 max | T max | Q min | Qo | q | |
| mm | mm | mm | mm | mm | mm | mm | kN/LB | kN | kg/m | |
| 2010 | 63. 50 | 31. 75 | 38. 10 | 15. 90 | 90. 7 | 47. 8 | 7. 9 | 250. 0/56818 | 270. 0 | 14. 00 |
| 2510 | 78. 10 | 31. 75 | 36. 90 | 16. 00 | 94. 8 | 40. 0 | 8. 0 | 271. 0/61590 | 292. 6 | 10. 72 |
| 2512(MXS3011) | 77. 90 | 41. 28 | 39. 60 | 19. 05 | 100. 0 | 57. 0 | 9. 7 | 340. 0/77272 | 367. 2 | 18. 40 |
| 2512F2 | 77. 90 | 41. 28 | 38. 50 | 19. 05 | 103. 4 | 60. 0 | 10. 0 | 400. 0/90909 | 420. 0 | 20. 28 |
| 2814 | 88. 90 | 44. 45 | 36. 60 | 22. 23 | 117. 6 | 58. 0 | 12. 7 | 471. 0/105955 | 507. 6 | 25. 70 |
| 3214 | 103. 20 | 44. 45 | 48. 00 | 22. 00 | 123. 5 | 55. 0 | 13. 0 | 476. . 0/108180 | 514. 0 | 23. 60 |
| 3315 | 103. 45 | 45. 24 | 49. 30 | 23. 85 | 130. 0 | 63. 5 | 14. 2 | 550. 0/125000 | 594. 0 | 27. 71 |
| 3618 | 114. 30 | 57. 15 | 52. 30 | 27. 97 | 138. 0 | 79. 2 | 14. 2 | 760.0/172727 | 820. 8 | 41. 20 |
| Detail of Material: | Hardness |
| Link: EN-8 | - |
| Pin: EN-8/16mnCr5 | 45-50 HRC |
| Bush: EN-8/SAE-8620 | 45-50 HRC |
