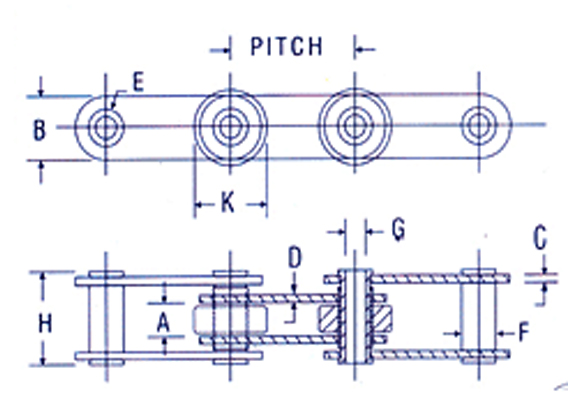

Hollow - Pin Chain
Hollow - Pin Chain
| Chain No. |
Pitch |
Breaking Load(kg) |
A |
B |
C |
D |
E |
F |
G |
H |
K |
| Z 40 |
50. 8 |
3500 |
15. 24 |
26 |
4 |
4 |
18 |
13. 8 |
9. 7 |
36. 58 |
31. 75 |
| Z 42 |
76. 2 |
3500 |
15. 24 |
26 |
4 |
4 |
18 |
13. 8 |
9. 7 |
36. 58 |
31. 75 |
| Z100 |
76. 2 |
8500 |
19. 5 |
36 |
4 |
5 |
23. 62 |
19. 5 |
13. 2 |
47. 32 |
47. 62 |
| Z102 |
101. 6 |
8500 |
19. 5 |
36 |
4 |
5 |
23. 62 |
19. 5 |
13. 2 |
47. 32 |
47. 62 |
| Z160 |
101. 6 |
18000 |
25. 4 |
50 |
5 |
6 |
32 |
26. 2 |
19. 56 |
57 |
66. 67 |
| Z162 |
152. 4 |
18000 |
25. 4 |
50 |
5 |
6 |
32 |
26. 92 |
19. 56 |
57 |
66. 67 |
| Detail of Material: |
Hardness |
| Link: EN-8 |
30-35 HRC |
| Hollow Pin: 16mnCr5 |
30-35 HRC |
| Bush: SAE-8620 |
40-45 HRC |
| Roller: EN - 8 |
35-40 HRC |
