Crates Conveyor Chain

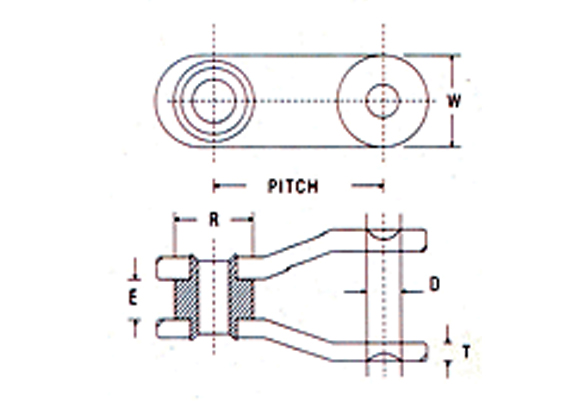

| Pitch (mm) | Link Width (C) | Link Thickness (T) | Pin Dia (mm) (R) | Pin Dia(mm) (D) | Inner Width (mm) (E) |
| 65 | 32 | 6 | 30 | 11 | 14 |
| 63. 5 | 32 | 6 | 30 | 11 | 14 |
| Detail of Material: | Hardness |
| Link: EN-8 | - |
| Pin: EN-8 / 16mnCr5 | 30-35 HRC |
| Bush: EN-8 / SAE-8620 | 35-40 HRC |
